Made In The USA
Since 1916, Vanguard has perfected the production of circular knitting machines in America. Vanguard offers a complete line of knitting machines ranging from 4” to 36” in diameter, all with jersey, rib and fleece capabilities. Through innovation and research, our machines use the highest quality materials to reduce heat build-up and vibration, extending machine life and increasing running speeds. With almost 150 years of combined experience in the knitting world, Vanguard Pailung has utilized hard-won knowledge to perfect its products and services.

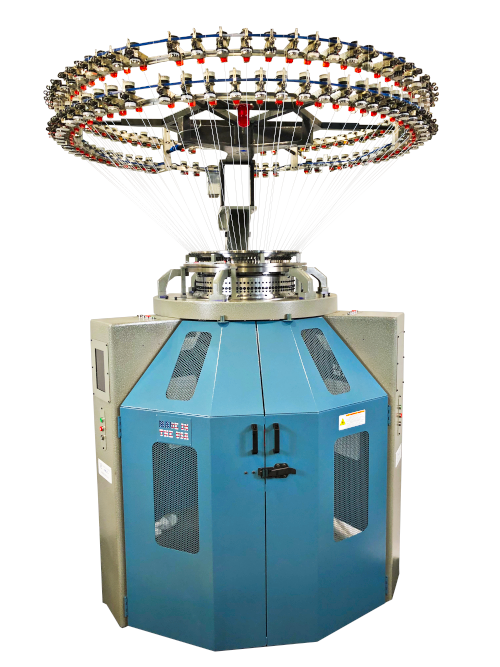

Single Jersey
The high speed, high production jersey machines are ideal for producing the finest quality single-knit fabrics. The computer-designed, closed cam track system ensures positive needle control and provides super stitch definition. The jersey machine is equipped with angular sinker technology to improve fabric quality and lower the defect rate, even at the highest speeds.
| Product Applications |
|---|
| AUTOMOTIVE |
| INDUSTRIAL |
| APPAREL |
| HOMEGOODS |
Standard Features
- Four-track capable, which includes one set of high-speed jersey cams
- Telemechanique AC-Inverter Drive
- Information Display Panel Integrated
- Uniwave Flutter Blower
- Top Cleaning Fan
- IRO Memminger 10LI Storage Feeders
- Central Stitch Adjustment
- Three Roller Positive Drive Takedown
- Standard Quality Wheel Drive
- System with Two-Speed Tape
- VPL Projectile Oiler
Optional Features
- Filter Flow 2000
- Specialty-Cut Cylinder (24-28)
- IRO Memminger RLA consisting of Two Servo Motors for Electronic Stitch Control
- VPL Fabric Scanner
- VPL Yarn Rate Transducers
- IRO Memminger Pulsonic 5.2 Oiler
- Spandex Kits
- Knit Monitoring System
- Parts Catalog
- Operators Manual
| Model | Feeds Per Inch | Sinker Top | Gauge | Diameter Range | Speed Factor |
|---|---|---|---|---|---|
| SJ3A/T | 3 | Angular | 16-36 | 26"-36" | 1800 |
| SJ3.2T | 3.2 | Flat | 16-36 | 11"-36" | 1350 |
| SJ4A/T | 4 | Angular | 16-28 | 11"-36" | 1800 |
